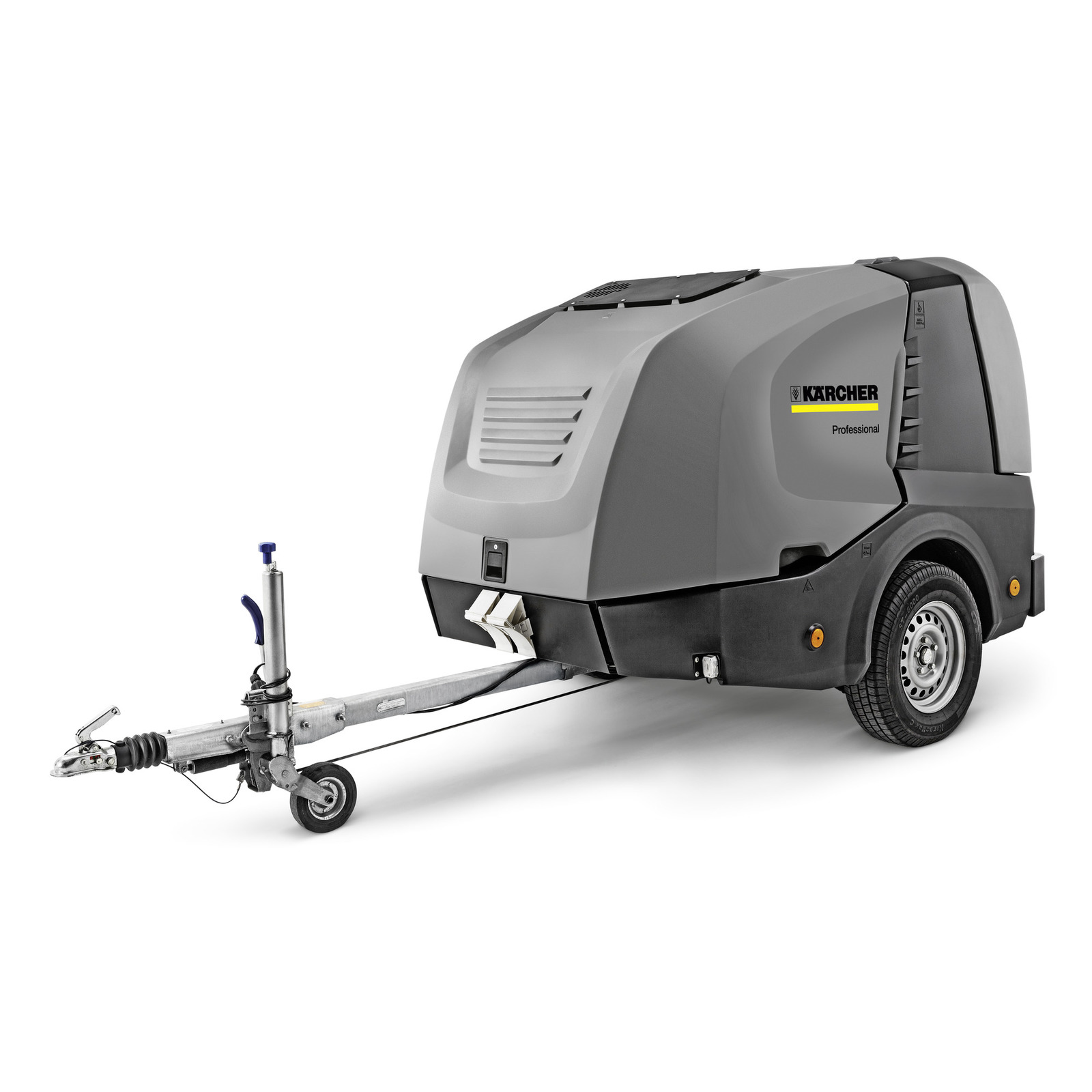

HDS-Trailer HDS 17/20 De Tr1

Kärcher Inc.

Mobile and self-sufficient: The HDS 17/20 hot water high-pressure cleaner offers 200 bar pressure and works without electricity. The highly efficient HDS Trailer is suitable for municipalities, industry and the construction sector.

Price on request

Thanks to its powerful diesel engine, the HDS 17/20 hot water high-pressure cleaner with 200 bar pressure always delivers clean cleaning results, even without electricity – for example on construction sites, in industry or in the municipal sector. In addition to maximum mobility and flexibility, the reliable appliance impresses with its exemplary efficiency. The HDS Trailer also impresses with its ease of servicing and user-friendliness. The device can be configured as required and can therefore be optimally adapted to individual requirements.

High flexibility

  • Thanks to the possibility of configuration, each trailer can be put together according to customer requirements.
  • Available as skid or cab versions for mobile use as a trailer or as a stationary solution.
  • A large hood makes it easier for service staff to access the technology.

Service friendliness

  • Sophisticated service software for fast fault diagnosis during servicing.
  • Proven quality components from Kärcher guarantee a long service life.
  • Also on board: water softening system to protect the heating coil from damage caused by limescale.

Reliability

  • Numerous safety functions protect the HDS trailer from damage in the event of a fault.
  • Built-in frost protection mode to protect all components in cold outside temperatures.
  • Proven and highly efficient burner technology.
Drive type Diesel
Motor manufacturer Yanmar
Engine power (kW/hp) 19 / 26
Flow rate (l/h) 900 - 1700
Pressure (bar/MPa) 60 - 200 / 6 - 20
Consumption of eco!efficiency heating oil (kg/h) 9.7
Dimensions (L × W × H) (mm) 3646 x 1747 x 1735
Höchste Effizienz
Highest efficiency

Proven and highly efficient burner technology. Heat recovery by using waste heat from the engine. Environmentally friendly operation and low operating costs thanks to Kärcher eco!efficiency mode

Simple operation

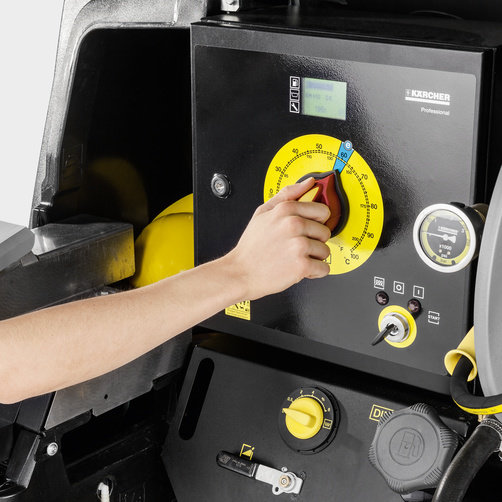

Convenient operation via a central selector switch. Quick set-up and dismantling thanks to 2 optional hose reels in the operating area. Safe storage thanks to generous storage options for protective equipment, accessories and cleaning agents.

Independent use

Large 500-liter water tank for up to 30-minute cleaning jobs at full water output. With 100-liter diesel tank – ideal for long work assignments. Powerful Yanmar diesel engines enable self-sufficient operation without a power source.
